HEND 30-50-60 LED Post Top Light with Selectable Kelvin and Built-In Photocell

$259.87



HEND LED Post Top light delivers a striking modern-minimalist aesthetic with its sleek, sophisticated circular design. The low-profile, compact form blends seamlessly into both urban and outdoor environments, offering a futuristic yet understated presence that elevates any space.

Field-Selectable: HEND Post Tops offers selectable wattage (30w, 50w, and 60w) and Kelvin temperature (3000K, 4000K, and 5000K), empowering you to tailor light output to any specific need.

Polycarbonate Lens: Designed for durability and performance, HEND features a rugged polycarbonate lens that resists impact, and long-term wear in demanding outdoor environments, while Type V optics provide uniform, 360-degree illumination—making it ideal for spaces requiring broad, balanced light distribution.

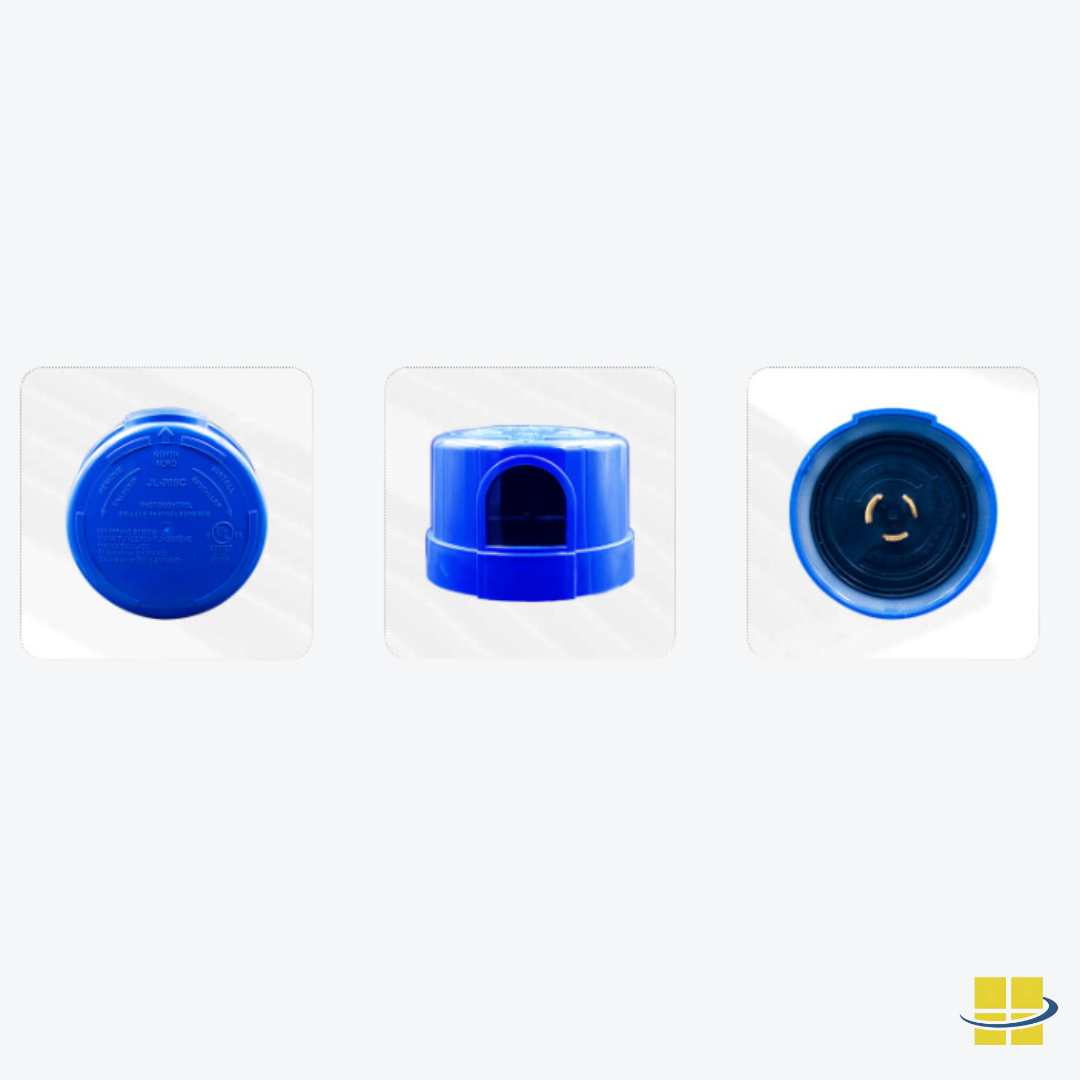

Built-In Photocell: Featuring a built-in photocell for effortless, energy-saving operation. HEND automatically turns on at dusk and off at dawn, ensuring your space is perfectly illuminated only when needed.



Used to automatically control lights based on movement, which enhances convenience, energy efficiency, and security.
  • Total

Description

Electrical Specifications:

  • Wattage Options:
    • 30w/50w/60w
  • LED Chips:
    • SMD 2835
  • AC input Voltage:
    • AC120-277V
  • Power Factor:
    • < 15% Total Harmonic Distortion (THD)

Performance Specifications:

  • Lumen Output:
    • 140LM/W to 150LM/W
  • Color Temperature Options (CCT):
    • 3000K (Warm White)
    • 4000K (Natural White)
    • 5000K (Daylight)
    • 3CCT Switch
  • Beam Angle:
    • 144° average beam angle
    • B:3, U:2, G:3

Environmental & Durability Specifications:

  • Operating Temperature:
    • -40°C to +45°C (-40°F to +113°F)
  • Material:
    • Aluminum alloy + PC lens
  • Lifetime:
    • 50,000 hours

Mounting & Installation:

  • Mounting Methods:
    • 2 3/8’’ Vertical Tenon 3″ Round Pole

Features:

    • Photocell Sensor
    • Motion sensor + RC-100 Remote Control

Aesthetic & Finish Options:

  • Housing Colors:
    • Black
    • Bronze

Applications:

  • Parking Areas
  • Walkways
  • Community Plazas

Packaging Information:

  • Product Dimensions:
    • Ø16.58 in
  • Package Dimensions:
    • 17.99 x 17.99 x 17.48 in
    • 19.09 x 19.09 x 23.03 in
  • Weight:
    • (15.43 lb) to (18.74 lb)

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your HEND Outdoor Post Light, 120-277v Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the study cost is refunded to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.



Additional information

Weight 18.74 lbs
Dimensions 17.99 × 17.99 × 17.48 in
Model Number

AF56XYR-TP421-PPA060-008

Weight Pounds

17 lbs

Shipping Weight (Pounds)

18.74 lbs

Product Family

HEND

EPA

1.02

Housing Material

Aluminum Alloy

Finish Specifications

Powder Coated

Finish Color (s)

Black, Bronze

Color Rendering Index (CRI)

70+

Lens Material

Clear Polycarbonate

Optics

Type V

Color Temperature (Kelvin)

3000K, 4000K, 5000K

LED Type

SMD 2835

System Watts

30w,50w,60w

Light Source Lumens** (5000K)

8600 lm

Luminaire Lumens** (5000K)

8100 lm

Luminaire Lumens Per Watts** (5000K)

135 lm/W

Dimensions in Inches

24.4X 18.9 X 6.7

Dimension in mm

244 mm × 189 mm × 67 mm

Mount (s)

Mounts on 2 3/8" Vertical Tenon

Rated Life (L70@ x Hours)

50,000 Hours

Voltage

120-277v

Surge Protection

5kV

Controls

Photocell, Occupancy Sensor

Operating Temperature

-40°C to +45°C(-40°F to +113°F)

IP Rating

IP65

lK Rating

IK10

BUG Rating

B2 U2 G1

Listings (ex: UL,CUL,CE)

CE, CUL, DLC Listed, RoHS, UL

Warranty

5 Year Warranty

Availability (Lead-Time)

5-7 Production Days, Plus Shipping
