Outdoor Riding Arena 60′ X 100′ Lighting Package – 25fc, 2.83 Max/Min – 8 CAROs 300W – 20ft

$11,599.87

This lighting package is purpose-built to deliver unmatched visibility and reliability in outdoor riding arenas. Providing an average of 25 footcandles with a superior 2.83 max/min uniformity ratio, it ensures smooth, shadow-free illumination for enhanced safety and performance. Designed for year-round use, the IP65- and IK08-rated CARO fixture features a durable die-cast aluminum housing and a corrosion-resistant finish. Type III low-glare optics provide even, controlled light that minimizes eye strain for both horse and rider, promoting confidence, comfort, and focus in every stride.

Unmatched Visibility for Peak Performance: This 8-fixture CARO 300-watt lighting package is designed for clarity. Delivering an average of 25 footcandles with an impressive 2.83 max/min ratio. Ensuring smooth, shadow-free coverage throughout the arena. This fixture ensures bright, uniform illumination across the entire riding area.

Durable Construction: Built for outdoor arenas, the CARO is rated IP65 for water and dust resistance and IK08 for impact protection. Its die-cast aluminum housing and integrated heat sink resist corrosion, dirt, and weather extremes—ideal for year-round use in equestrian environments.

Optical Superiority: Type III Low-glare optics reduce eye strain and distractions for both horse and rider, promoting better focus, comfort, and confidence in the arena. A beam distribution of Type III optic delivers even, controlled light across various arena layouts, enhancing visibility, safety, and performance during all riding activities.

Description

Electrical Specifications

Wattage: 300W
Voltage: 120V–277V
Frequency: 50/60Hz
Power Factor: ≥0.95
THD (Total Harmonic Distortion): ≤20%
Driver Efficiency: >90%
Footcandles: avg. 25fc
Max/Min: 2.83
Fixture Quantity: 8

? Optical Performance

Luminous Efficacy: 135.8 Lumens per watt
Lumen Output: 39957 lumens
CRI (Color Rendering Index): ≥70
Kelvin Temperature: 4000K
Beam Angle: Type III Optics

? Thermal & Durability

Operating Temperature: -40°F to 104°F
Heat Dissipation: Integrated aluminum heat sink
Surge Protection: 10kV

Mechanical / Construction

Housing Material: Die-cast aluminum
Lens Cover: Polycarbonate
Mounting Options: Universal Mount
Dimensions: Approx. 14.96″ (Ø) x 7.87″ (H)
Weight: Approx. 6.5 kg (14.3 lbs)

? Certifications & Compliance

IP Rating: IP65 (dust-tight and water-resistant)
IK Rating: IK08 (impact resistance)
Certifications: UL, DLC Premium, RoHS, CE

Controls & Features

Sensor Compatibility: Plug n Play Dimming Occupancy Sensor
Warranty: 5-year limited warranty

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

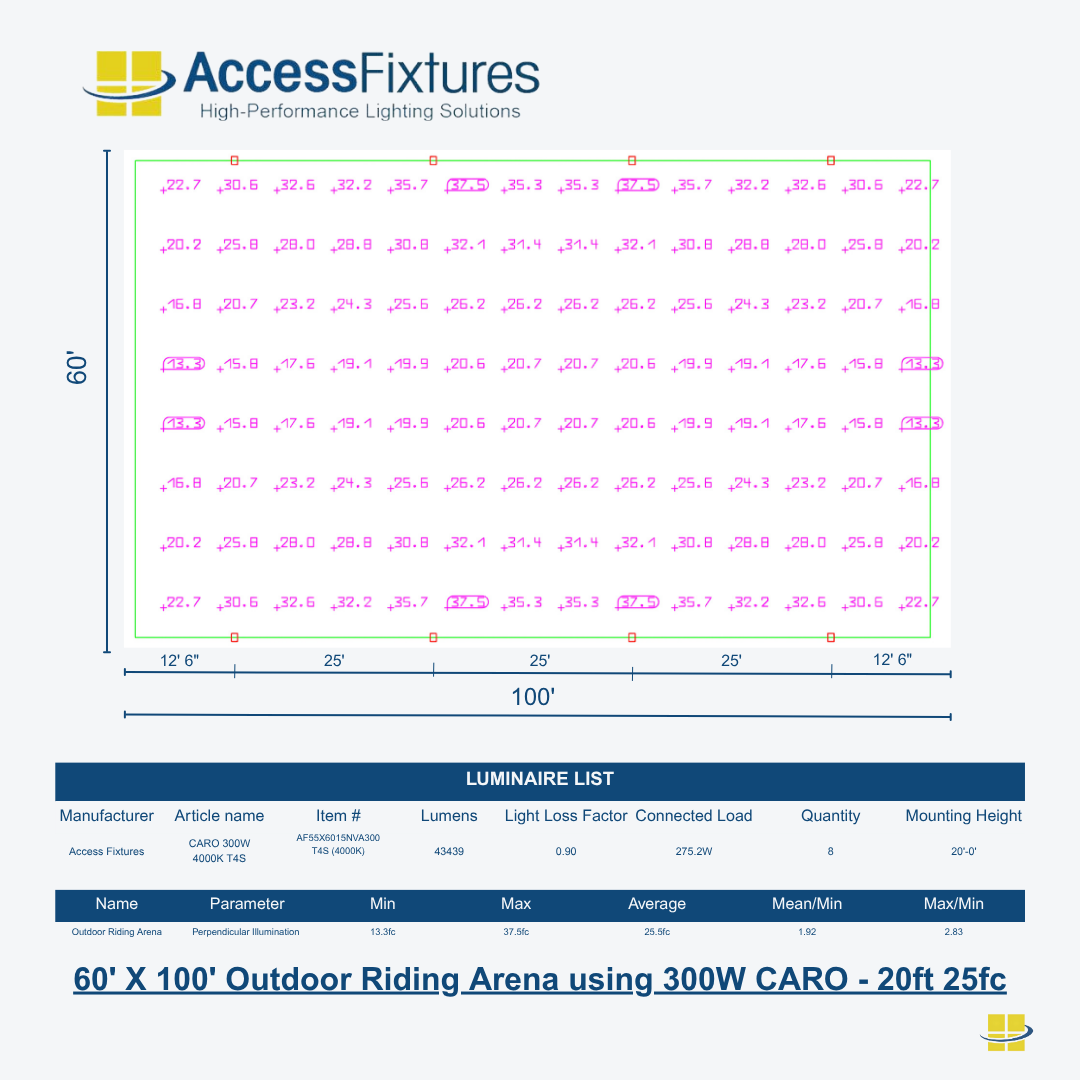

Need a Photometric Analysis for Your CARO LED Outdoor Riding Arena Sports Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Additional information

Indoor/Outdoor Courts	Outdoor
Sports Level of Play	Equitation & Jumping
Availability	7 to 10 Day Production, plus Shipping
Available Finishes	Bronze
Light Source	3000K – Neutral White, 4000K – Cool White, 5000K – Bright White
Color Rendering Index (CRI)	70+
Housing	Die cast aluminum housing
Listings	CE, CuL Listed, DLC Premium, RoHS, UL Listed
Mounting Height	20ft
Mounting	Universal Mount
Product Family	CARO
System Watts	300w
Voltage	120v, 277v
Max/Min Uniformity	2.83
Average Footcandles	25
Number of Fixtures	8
Warranty	5-Year Limited Warranty
