Description
Lighting Performance
- Lumen Output: 1960 to 4200 lumens
- Efficacy: 140 lm/W
- Correlated Color Temperature (CCT): 3-CCT Selectable (3000K, 4000K, 5000K)
- Color Rendering Index (CRI): >70
- Dimming: 0-10V dimmable
- Lifespan (L70): 50,000 hours
Electrical
- Input Voltage: 120-277V, 120-347V options
- Input Frequency: 50/60 Hz
- Wattages: 3 selectable wattages, with a maximum of 24W
- Power Factor: >0.9
- Total Harmonic Distortion (THD): <20%
- Dimming: 0-10V
- Operating Temperature: -40°F to 113°F (-40°C to 45°C)
Construction
- Housing Material: Die-cast aluminum
- Finish: UV-resistant powder coating
- Lens: Anti-UV clear polycarbonate lens
- Optics Options: 360° optics

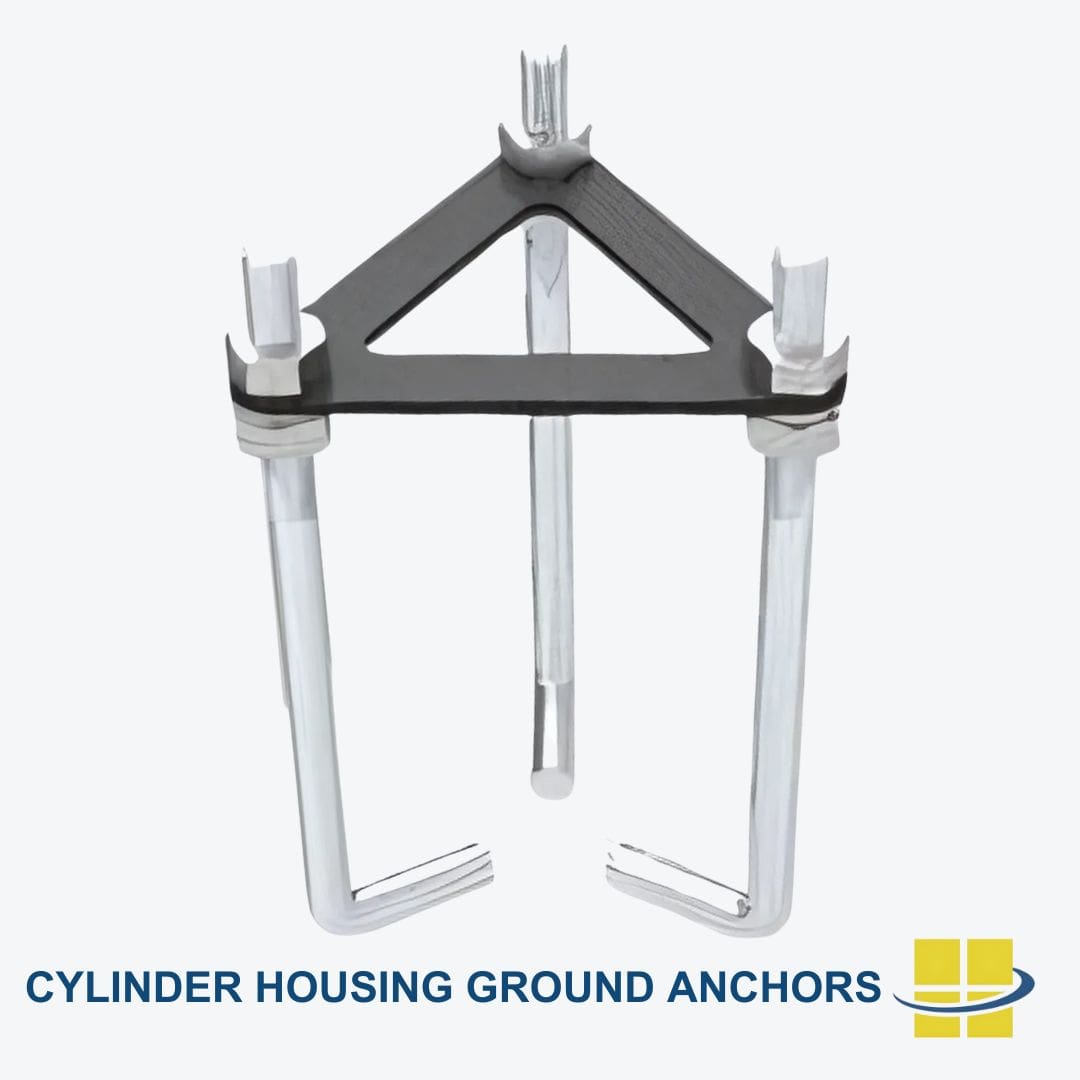

- Mounting: Ground installation standard
- Physical Dimensions:
- Cylinder Housing: Ø 6.39” C x 40.98” H or 42.24” H
Environmental Ratings
- Water Resistance: Wet Location rated (IP66)
- Corrosion Resistance: Resistant to water, salt, and corrosion
Listings and Certifications
- DLC Premium: Listed for high energy efficiency and performance standards
- UL Certification: Meets U.S. and Canadian standards
- FCC Compliance: Meets Federal Communications Commission standards
- RoHS Compliance: Meets standards for hazardous substance restrictions
Emergency Options
- Emergency Backup Battery Driver: Available for continuous lighting during power outages
Warranty
- Duration: 5 years, exclusive limited warranty
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

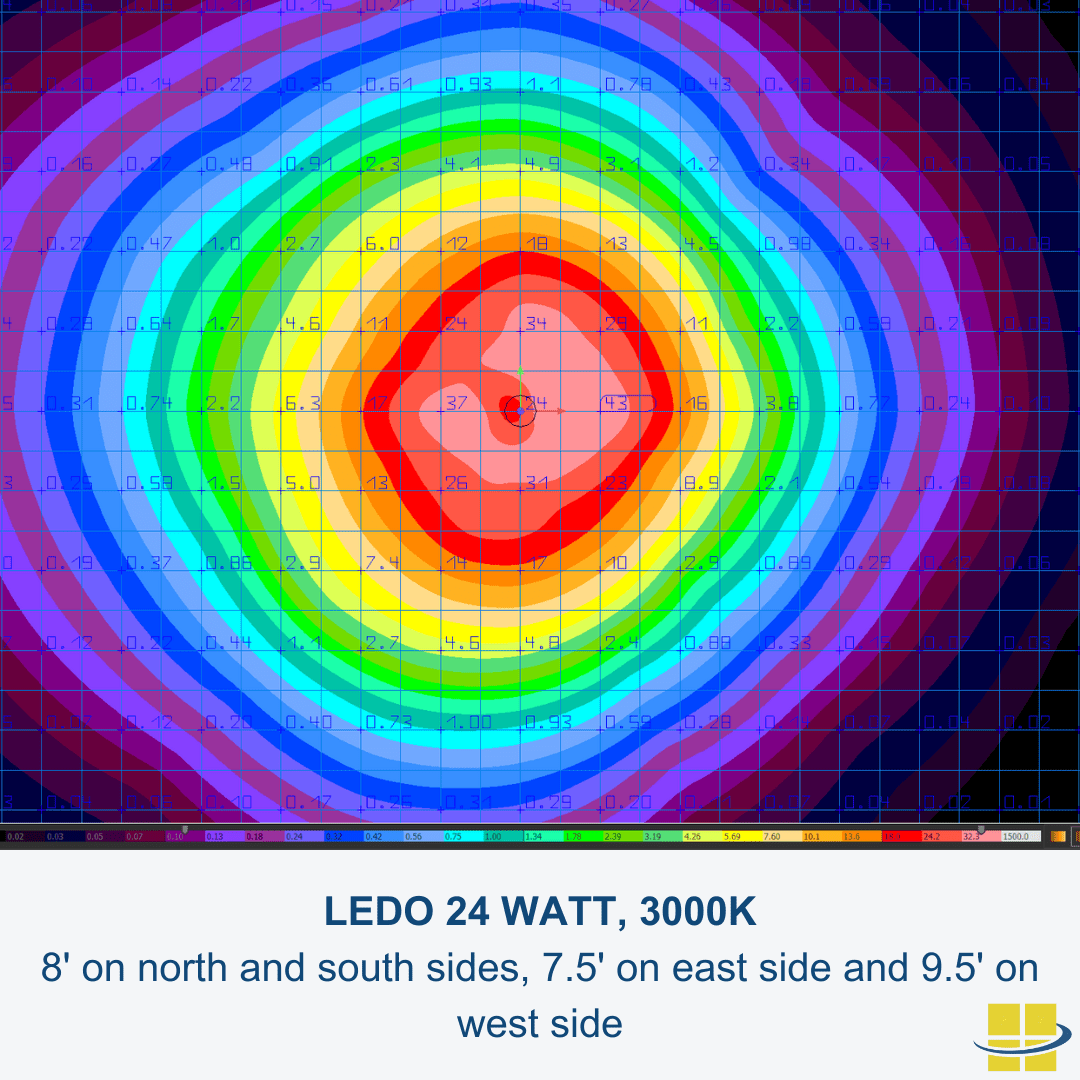

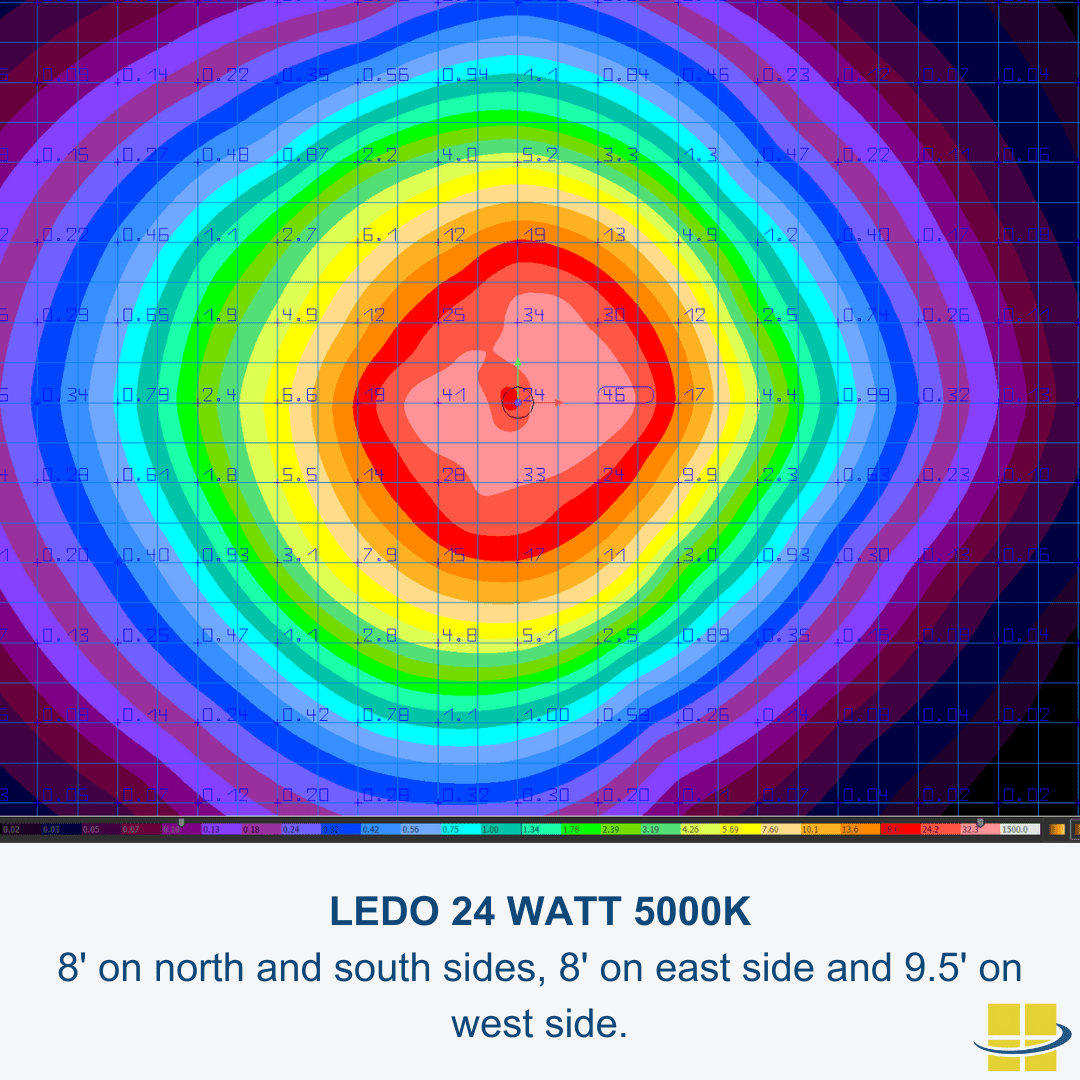

Need a Photometric Analysis for Your LEDO Bollard Project?
A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the study cost is refunded to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
