Description
Electrical Specifications:
- Wattage Options: 10w/19w/28w
- AC Input Voltage: 120-277V or 347-480V
- 1-10v Dimmable within the housing
- Standard Surge Protection included (2kV) 10k-V available
- -40°C to +50°C Environment.
Optical Specifications
- Kelvin Temperature: 3000K, 4000K, 5000K
- Standard Colors Available: Black, Custom RAL Colors Available.

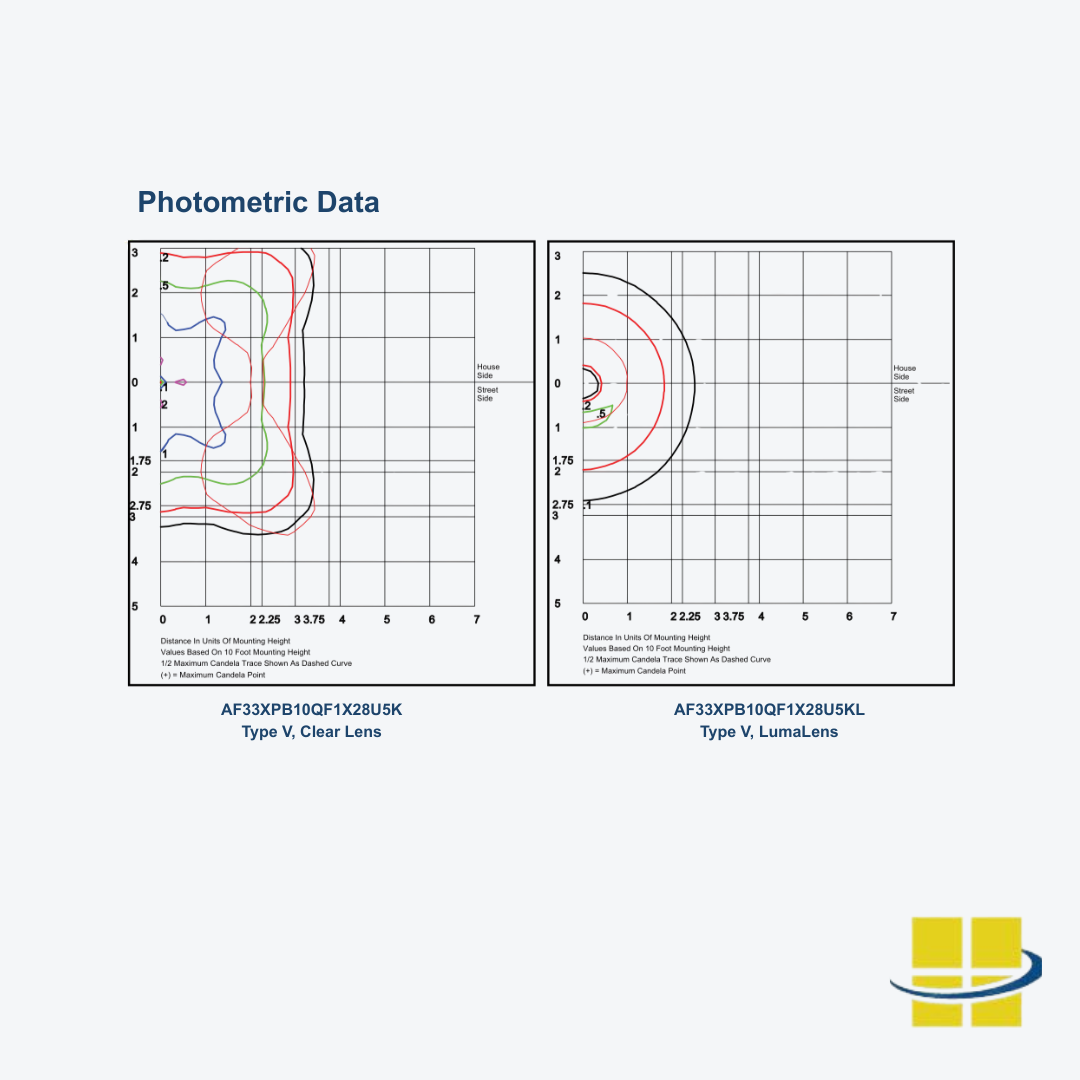

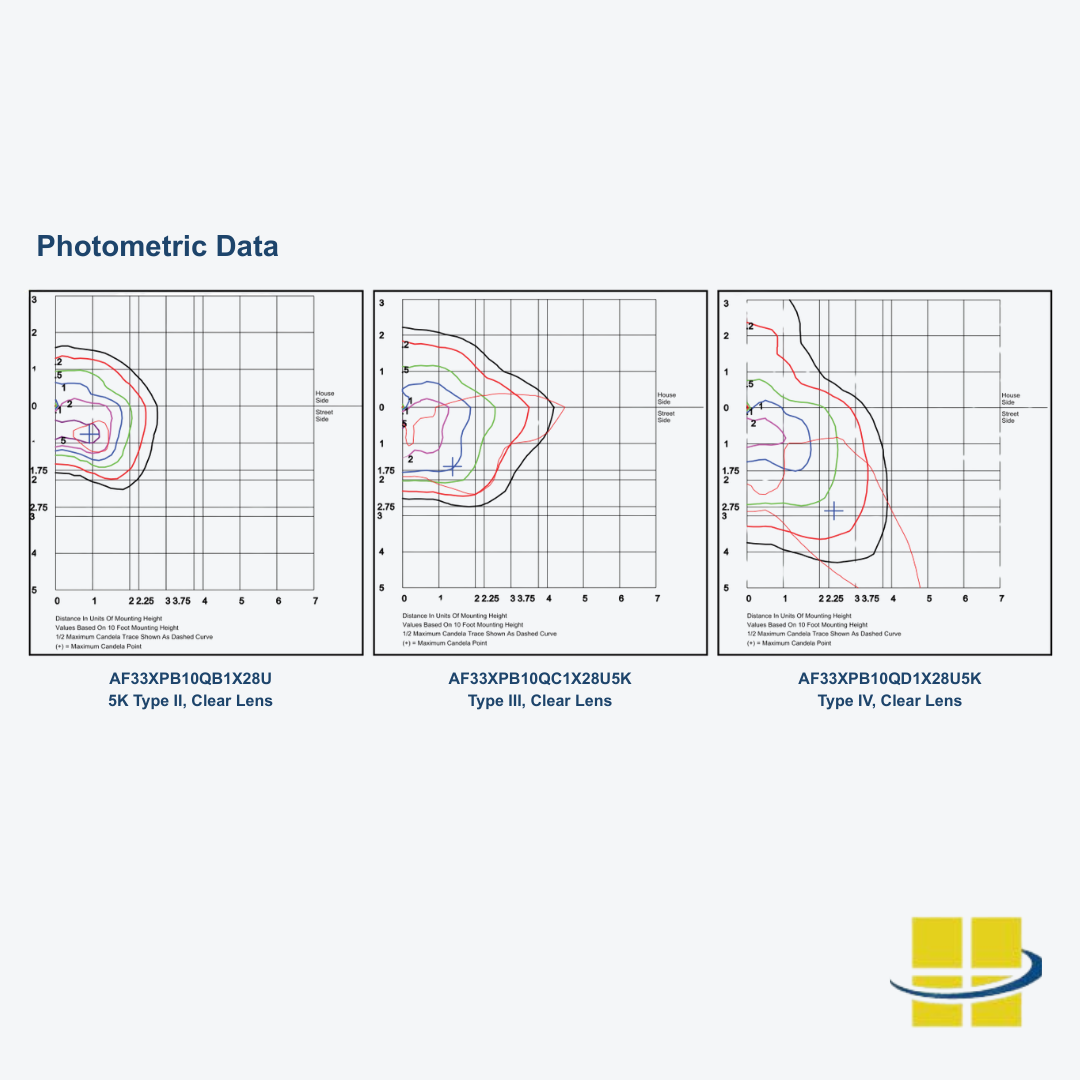

- Light Distribution: Type II, Type III, Type IV, Type V

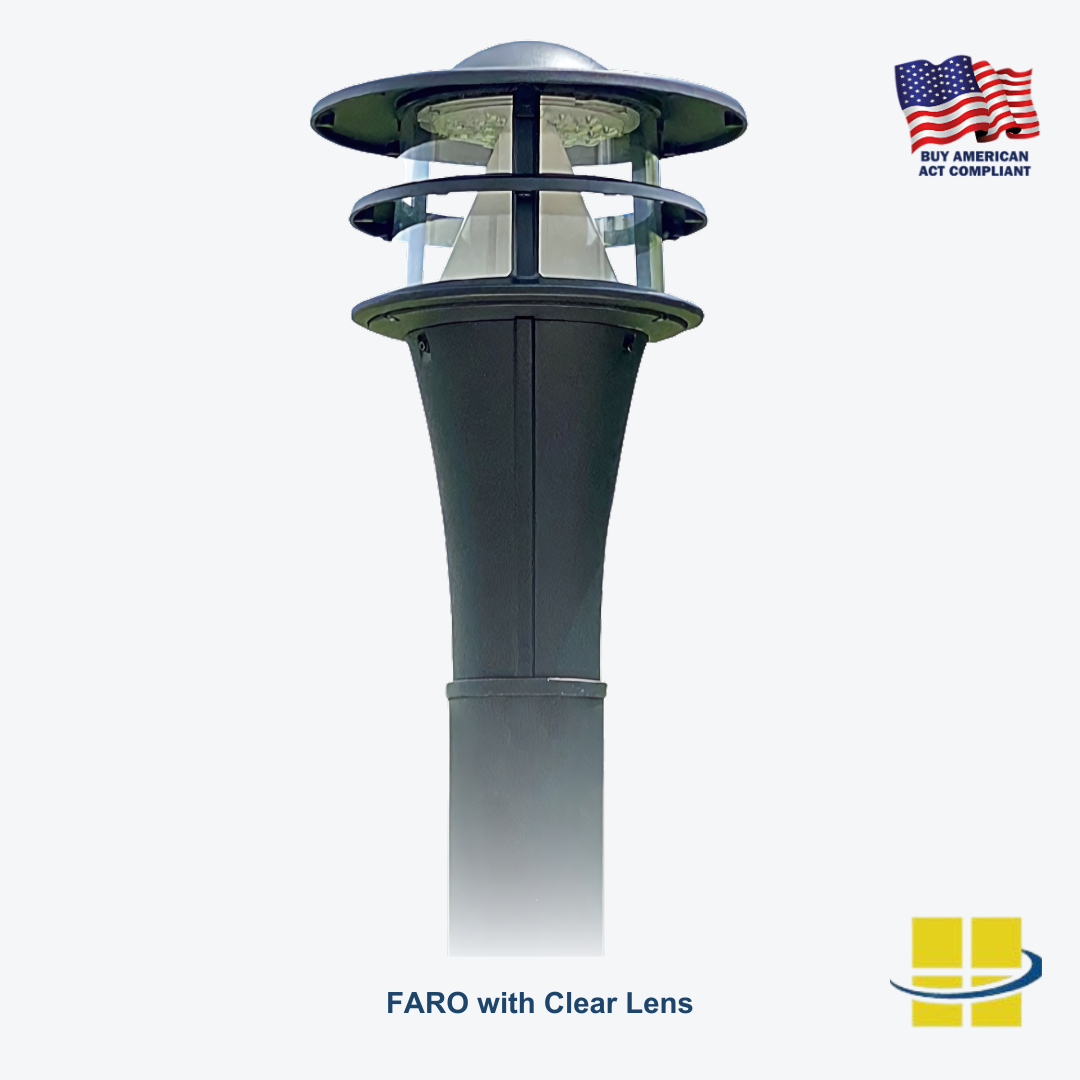

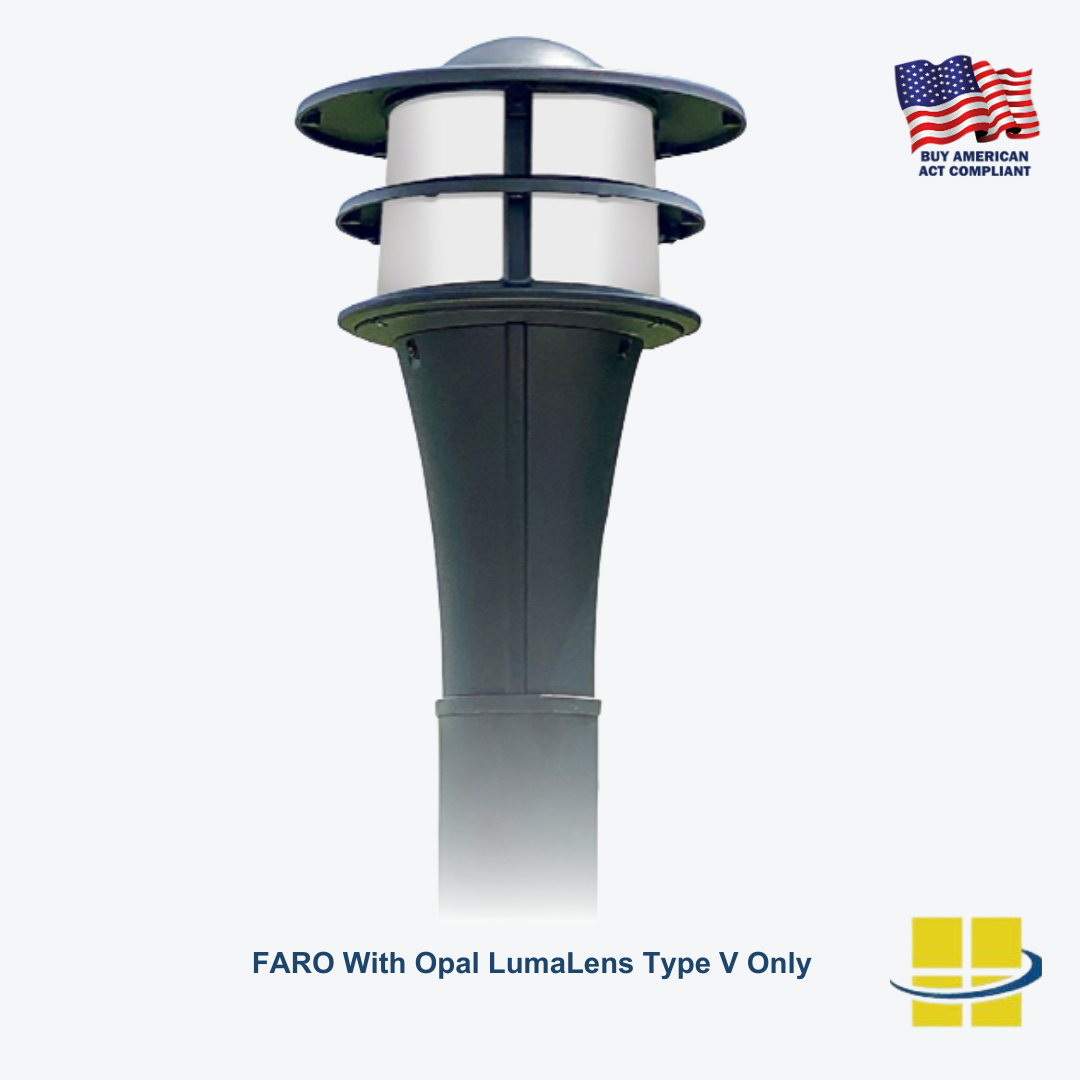

- Lens Option: Clear UV-Stabilized Polycarbonate Array Lens, SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens* (*Type V Models Only)
Mechanical and Design Features
- Finish: Black Powdercoat Finish Over a Chromate Conversion Coating. (Custom RAL Colors Available)
- Housing Material: Die Cast Aluminum Housing

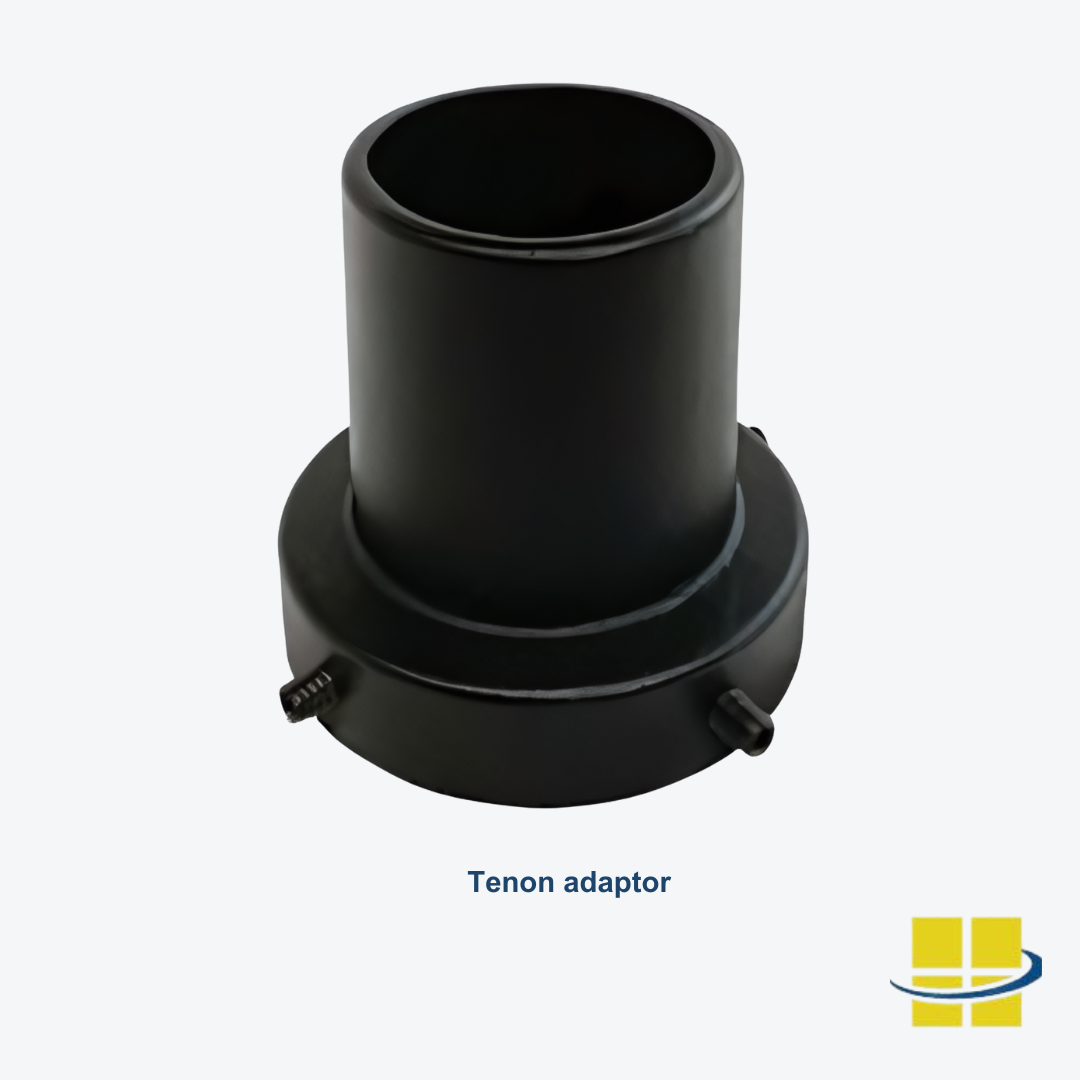

- Controls (Optional) Photocell, Surge Protection, Black and Custom Color Tenon Adaptor
- Listing: ETL:Listed for Wet Locations,ANSI/UL1598,8750; lP66 Rated
- IP Rating: IP66 (Water resistant against powerful jets).
- EPA: 0.8

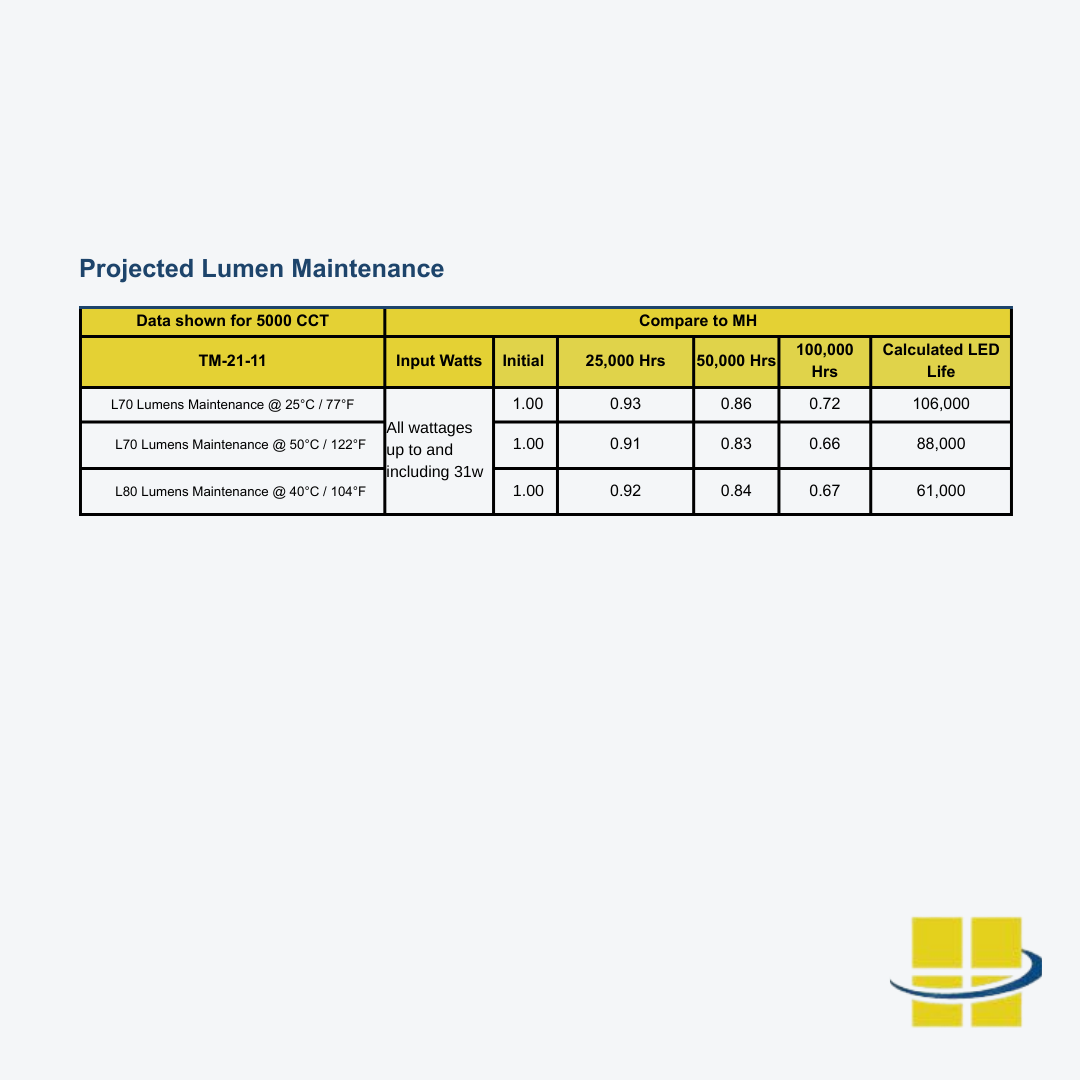

- Lifetime: 106,000 Hours
- Mounting Installation: Post Top Accommodates “P3″ 2⅞” O.D. x 3″ Tenon.
- Weight: 14 lbs
- Warranty: 5 Year Limited Warranty
