Lighting a hockey rink is far more complex than simply installing fixtures.
The choice of wattages, optics, and distribution patterns for Hockey Rink Lighting directly impacts player performance, spectator experience, and environmental responsibility. A poorly lit rink compromises safety and gameplay, while an optimized system elevates the entire experience. Below, we break down the key considerations that transform a simple installation into a precision-engineered lighting solution.
Key Takeaways
-
- Strategic Wattage and Uniformity: Different wattages are used not arbitrarily, but as part of a holistic design strategy to achieve consistent light levels (uniformity) across the entire playing surface while optimizing energy use.
- Precision Optics and Glare Control: Highly engineered optics and fixture placement are critical for directing light exactly where needed, maximizing puck visibility, and minimizing glare that can impair player safety and spectator comfort.
- Efficiency Meets Responsibility: Target footcandle ranges ensure optimal visibility for the level of play, while advanced fixture design minimizes backlighting and spill light, protecting the environment from light pollution.
Why Different Wattages are Essential for Ice Rinks?
In sports lighting, a "one-size-fits-all" wattage strategy is inefficient and often ineffective. Strategic mixing of wattages is foundational to a high-performance design.
Purpose-Driven Design: The intensity required to track a black puck against a white surface is immense. Higher wattages (e.g., 400W–1000W LED equivalents) are strategically clustered over critical areas requiring intense vertical and horizontal illumination: center ice, the blue lines, and the goal zones. In contrast, lower wattages (e.g., 200W–400W) can be used for the peripheral zones, stands, or areas closer to the boards where ambient light is sufficient.
Energy Efficiency Through Precision: Mixing wattages allows designers to achieve the target footcandle levels (detailed below) without over-lighting any area. This precise energy management reduces wasted power, lowering utility costs, and extending the lifespan of the fixtures by operating them at optimal temperatures.
Fixture Flexibility and Mounting Height: Different wattages are paired with specific optics to tailor illumination to the physical layout. Higher wattage fixtures might be used on taller mounting poles at center ice, while lower wattage units with wider beam spreads fill in the closer areas, ensuring consistent uniformity from varied heights.

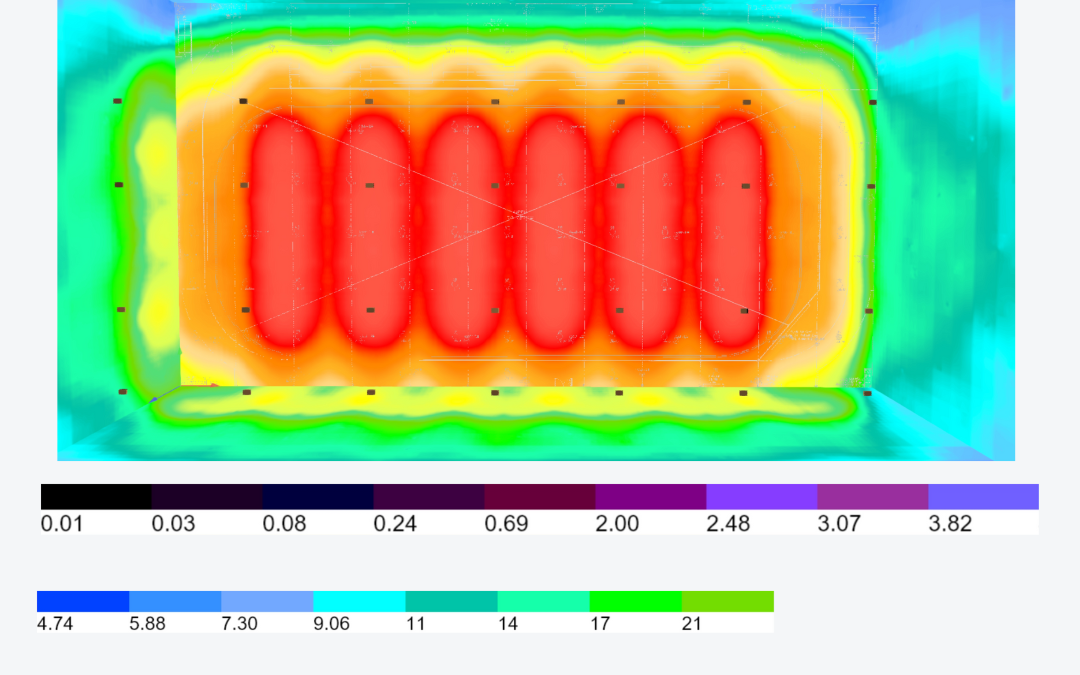

Optics and Light Distribution: The Uniformity Imperative
The optical design is arguably the most critical component, determining how the light leaves the fixture and lands on the ice.
-
Precision Optics Control: Modern sports lighting relies on highly engineered optics (reflectors or lenses) to control the beam angle—often with degrees of variation as small as $5^\\circ$ to $60^\\circ$. This is crucial for directing light exactly where it is needed, minimizing wasted light spill into the stands or ceiling.
-
Uniformity is Key to Player Safety: Proper optical design ensures a consistent ratio of light levels across the entire ice surface, known as the uniformity ratio (e.g., Average/Minimum). This consistency is vital for players to track the fast-moving puck without suffering visual fatigue or encountering distracting dark spots (shadowing) or overly bright zones (hotspots).
-
Staggered Layouts and Beam Overlap: Fixtures are intentionally staggered in their mounting positions to ensure that the light from multiple sources overlaps. This overlapping creates smooth, gradient-free transitions between beams, significantly enhancing the three-dimensional visibility required to track the puck at high speed.

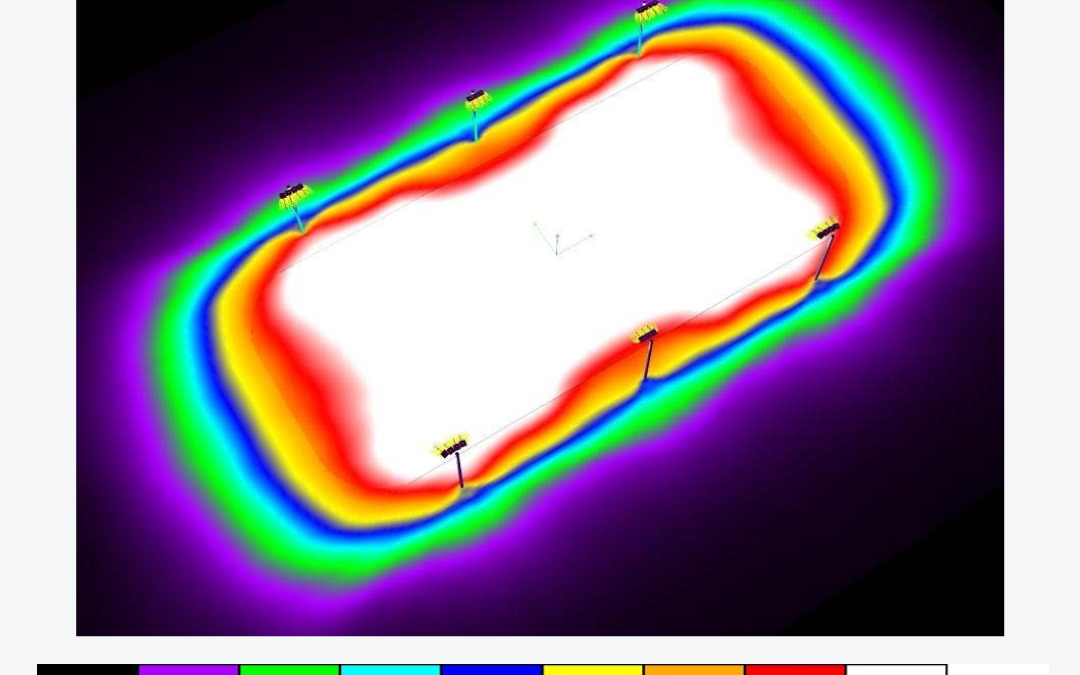

Footcandle Range: Balancing Visibility and Efficiency
Footcandles (fc) are the unit of measure for illuminance, and the target range is determined by the expected level of play and media requirements.
-
Target Light Levels:
-
Recreational/Practice Rinks: Typically require 50–75 footcandles.
-
Professional/Broadcast Rinks: Require significantly higher levels, often between 100–150 footcandles, with strict limits on the uniformity ratio (e.g., $1.5:1$ max) to meet HD and 4K broadcast standards.
-
-
Consistency is a Performance Metric: Maintaining a tight and consistent footcandle range ensures that players can accurately track the puck, follow player movements, and react without the constant, draining eye adjustment that occurs in poorly lit environments.
Glare Control: Protecting the Player's Vision
Glare is unmanaged light that causes visual discomfort or, critically, impairment. In high-speed sports like hockey, glare can be a safety hazard.
-
Shielding and Precision Optics: Glare is primarily controlled through the fixture's design:
-
House Side Shielding (HSS): Physical barriers that prevent light from spilling toward the seating area or out of the arena.
-
Precision Reflector Systems: Directing the light down onto the playing surface while minimizing the light emitted at high angles.
-
-
Player and Spectator Comfort: Effective glare management means that a player looking up to take a shot or follow a high pass is not momentarily blinded. For spectators, proper glare management enhances the viewing experience by preventing harsh light sources from interfering with their sightlines.
No Backlights = Reduced Light Pollution
Modern sports lighting is not just about performance inside the arena; it is also about responsibility outside of it.
-
Directional Control and Spill Prevention: Fixtures used in outdoor or open-air arenas are designed with a directional cutoff that minimizes "backlight" (light cast behind the fixture) and "uplight" (light cast upward). This ensures light is focused solely on the ice.
-
Environmental Responsibility: Preventing unnecessary skyglow (light pollution) is a critical mandate. By controlling light spill, designers protect surrounding residential areas from nuisance light and safeguard nocturnal wildlife habitats, aligning the facility with modern environmental standards.
Conclusion: The Synergy of Science and Sport
The effective illumination of a hockey rink is far more than a simple installation—it is a sophisticated synergy of electrical engineering, optical physics, and sports performance criteria. Every decision, from selecting the specific wattage of an LED fixture to the precise orientation of its optics, directly contributes to the safety of the athletes, the fairness of the competition, and the enjoyment of the spectators.
Facility managers and lighting designers must view the rink as a high-speed, demanding visual environment. By carefully balancing the factors of wattage, uniformity, glare control, and environmental impact, they move beyond basic functional lighting to create a premium, responsible, and high-performance space. Ultimately, when the lighting is optimized, it disappears, allowing the dramatic action on the ice to take center stage, maximizing puck visibility, and ensuring the only thing hindering a player's view is the opponent's defenseman.
Hockey Rink Lighting Frequently Asked Questions (FAQs)
What is the ideal Correlated Color Temperature (CCT) for ice rink lighting?
The ideal CCT is generally between 5000K and 6000K (Cool White to Daylight). This color temperature provides the bright, crisp light necessary to maximize the contrast between the black puck and the white ice, which is essential for tracking speed.
Are metal halide lights still used in new rink installations?
Rarely. While metal halide lights were the standard for decades, they are being rapidly replaced by LED sports lighting systems. LEDs offer superior energy efficiency, instant on/off capability, better light quality, and significantly lower maintenance costs.
What is the most important factor in achieving uniformity?
Optical control and fixture placement. Uniformity is achieved by using precision optics to shape the beam and then staggering the fixtures in a layout that ensures the beams overlap effectively, eliminating shadows and hot spots.
How does lighting affect broadcast quality?
For HD and 4K broadcasts, lighting must be high intensity (100–150 fc), have a high Color Rendering Index (CRI of 80+), and maintain an extremely tight uniformity ratio to prevent flicker or visual distortion on camera.
What is light trespass and how is it controlled?
Light trespass, or light pollution, is light that spills beyond the boundaries of the rink. It is controlled using directional optics, precise aiming, and house side shielding (physical barriers) to ensure the light stays contained to the playing surface.
What are the power savings of switching to LED?
Switching from traditional metal halide or high-pressure sodium to LED can typically result in power savings of 50% to 70% due to the significantly lower wattage required for the same light output.
How often should footcandle levels be checked?
Facility managers should verify footcandle levels annually or after any significant maintenance or fixture replacement. This ensures the system still meets the initial design and performance criteria.
What is the role of the mounting height in rink lighting design?
Mounting height influences the required beam angle. Taller mounts generally allow for wider beam spreads to cover a larger area, while shorter mounts may require narrower, more intense beams to push light across the surface without excessive glare.
Do dimming capabilities matter for a hockey rink?
Yes, dimming is highly beneficial. It allows the facility to run the system at lower wattage/footcandle levels for practices or maintenance, achieving greater energy savings without sacrificing the ability to instantly boost light for games.
What is a typical lighting lifespan for LED hockey fixtures?
High-quality LED sports fixtures typically have a rated lifespan of 50,000 to 100,000 operating hours before light output degrades below 70% of the initial lumen output ($L_{70}$).
